Diameter 2 inch x 2 inch NaI(Tl) Scintillation Detector, Energy Resolution: <7.0%@662keV(6.6% typ.)


Brand: OST Photonics

Quantity: 1 piece

Delivery Time: 3 weeks

Bulk Discount: 3%(≥5 Pieces)




  1. Model Number: NAI2/2P2
  2. Scintillator: Dia. 2 inch x 2 inch NaI(Tl) scintillator
  3. PMT: 10-stage Dia. 2 inch PMT with 14-pin connector
  4. Energy Resolution: <7.0%@662keV(6.6% typ.)
  5. Operating Temperature: -30~50℃
  6. High Voltage: +400~+1100V(Positive polarity configuration)
  7. Aluminum Housing

Diameter 2 inch x 2 inch NaI(Tl) Scintillation Detector Description

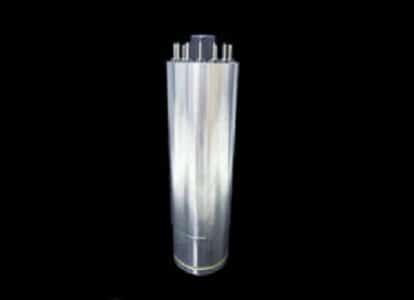

The Model NAI2/2P2 Scintillation Detector is a hermetically sealed assembly which includes a high resolution Dia. 2″x2″ NaI(Tl) scintillator, a 2″ photomultiplier tube, an internal magnetic/light shield, an aluminum housing and a 14-pin connector.

This kind of 14-pin NaI(Tl) detectors have good energy resolution(<7.5%@662keV) and stability, their standard 14-pin connector can be easily inserted in plug-on photomultiplier tube(PMT) base or digital Multi-Channel Analyzer(MCA) for Gamma-ray detection systems.
