- Model Number: NAI4/4/16P3.5
- Scintillator: 4 inch x 4 inch x 16 inch NaI(Tl) scintillator
- PMT: 8-stage Dia. 3.5 inch PMT with 14-pin connector
- Energy Resolution: ≤8.5%@662keV(Cs-137)
- Operating Temperature: -30~50℃
- High Voltage: +400~+1100V(Positive polarity configuration)
- Stainless Steel Housing

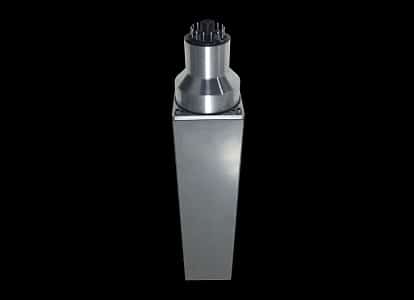

4 inch x 4 inch x 16 inch NaI(Tl) Scintillation Detector Description
The Model NAI4/4/16P3.5 Scintillation Detector is a hermetically sealed assembly which includes a high resolution 4″x4″x16″ NaI(Tl) scintillator, a 3.5″ photomultiplier tube, an internal magnetic/light shield, an stainless steel housing and a 14-pin connector.
This kind of 14-pin NaI(Tl) detectors have good energy resolution(≤8.5%@662keV) and stability, their standard 14-pin connector can be easily inserted in plug-on photomultiplier tube(PMT) base or digital Multi-Channel Analyzer(MCA) for Gamma-ray detection systems.
