- Material: MgO single crystal
- Orientation: <111>±0.3°
- Dimension: 5 mm x 5 mm
- Dimension: +/-0.1 mm
- Thickness: 0.5 mm
- Thickness Tolerance: +/-0.05 mm
- Polishing: Single Side Polished
- Polished Side Roughness: Ra<0.5 nm

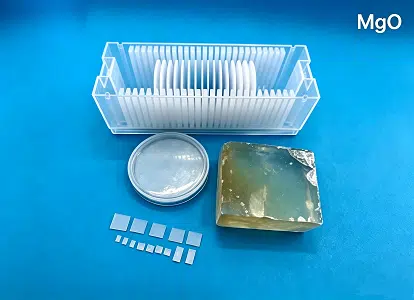

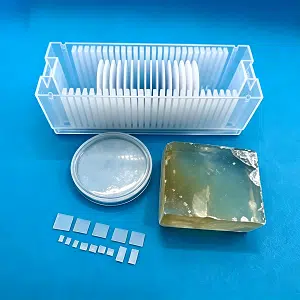

MgO Single Crystal Description
MgO is an excellent single crystal substrate for thin films of Ferro magnetic, Photo-electronic and high Tc superconductor material. Because the dielectric constant and loss microwave band of MgO single crystal is very small, and the large size MgO substrate (diameter of 2 inches and larger) can be obtained, it has currently become an important industrial HTS thin monocrystalline substrate.
For further details, please kindly visit MgO Substrate – OST Photonics (ost-photonics.com). If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: firstname.lastname@example.org.
Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at email@example.com.
