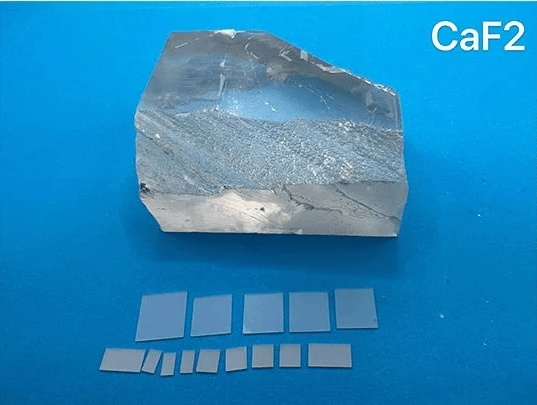

CaF2 Substrate
Calcium fluoride (CaF2) crystal has a wide light transmission range (good light transmission performance in the wavelength range of 0.13μm~10μm), low stress birefringence (no obvious intrinsic birefringence above 200nm), uniform refractive index, stable mechanical properties, non-deliquescent, and strong against radiation damage. It is an ideal material for making various optical windows, prisms and lenses.
OST Photonics offers high quality CaF2 substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.
Features
Good light transmission performance
Low stress birefringence
Uniform refractive index
Stable mechanical properties
Non-deliquescent
Strong against radiation damage
Applications
Infrared windows, prisms and lenses
Ultraviolet windows, prisms and lenses
- Laser lithography
Processing Capability
Orientation:<100>,<110>,<111>, etc.
Dimension: 1”, 2”, 3”, 4”, 10x10mm, 20x20mm, 30x30mm, etc.
Thickness: 0.5mm, 1.0mm, etc.
Available items: wafers, substrates, transparent ceramics, windows, prisms, blanks and customized optics
Specification and properties of CaF2 Substrates
Crystal System | Cubic |
Density | 3.18 g/cm^3 |
Melt Point | 1360 ℃ |
Refractive Index | 1.39908 at 5 um |
Solubility | 0.0017g/100g@20℃ |
Transmit Wavelengths | 0.13~11.3μm |
Hardness | 4 Mohs |
Elasticity Coefficient | C11=164, C12=53, C44=33.7 |
Apparent Elastic Limit | 36.54 MPa |
Thermal Expansion | 18.85×10^-6∕℃ |
Orientation | <100>,<110>,<111>, etc. |
Orientation Tolerance | ±0.5° or better |
Dimension | 1”, 2”, 3”, 4”, 10x10mm, 20x20mm, 30x30mm, etc. |
Dimension Tolerance | ±0.1 mm or better |
Thickness | 0.5mm, 1.0mm, etc. |
Thickness Tolerance | ±0.05 mm or better |
Surface Finish | Single side polished (SSP)/Double sides polished (DSP) |
Package | Class 100 clean bag, Class 1000 super clean room |
