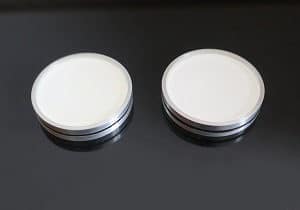

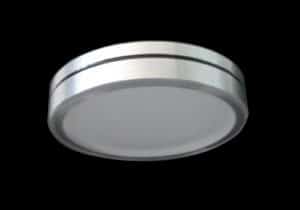

X-Ray Type NaI(Tl) Scintillator
X-ray Type NaI(Tl) scintillator has a disk shape NaI(Tl) crystal which is housed in aluminum cases. Beryllium or aluminum foil is used as the entrance window, and it is used for measuring soft X-ray or low-level Gamma-ray.
Design Options
1 ) Encapsulation material options
Metal container: Aluminum, Stainless steel
Optical window: K9 glass, Quartz, Sapphire
Entrance window: Beryllium, Aluminum
2 ) Special flanges, mounting fixtures or other modifications
Features
1 ) For soft X-ray or low-level Gamma-ray detection
Typical Specification
Model | Crystal Size(mm) | Encapsulation | Energy resolution(Am-241) | |
Diameter | Height | |||
NaI-D25H1 | 25.4 | 1.0 | Aluminum housing, K9 glass window, beryllium entrance window | ≤18%@60keV |
NaI-D38H1 | 38.1 | 1.0 | Aluminum housing, K9 glass window, beryllium entrance window | ≤18%@60keV |
NaI-D50H1 | 50.8 | 1.0 | Aluminum housing, K9 glass window, beryllium entrance window | ≤18%@60keV |
Note: other size or specifications can be customized according to your requirements. | ||||
