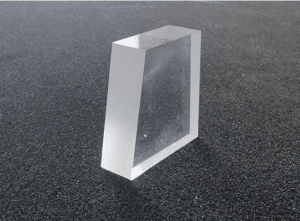

LSO(Ce) Scintillator (LSO(Ce) Scintillation Crystal)
LSO(Ce) (Cerium-doped Lutetium Oxyorthosilicate) is a high-performance inorganic rare-earth scintillation crystal. It features a high density of 7.4 g/cm³, fast decay time of ~40 ns, and light yield of about 30,000 photons/MeV, offering excellent gamma stopping power and time resolution. Widely used in PET scanners, high-energy physics experiments, and radiation detection, it is one of the most mainstream advanced scintillation materials for modern detection systems.
OST Photonics offers custom supply of LSO(Ce) crystals, LSO(Ce) scintillation screens and LSO(Ce) arrays tailored to your requirements. We provide a diverse range of design solutions and reflector material options to optimize array performance, enabling our products to deliver high light output, outstanding detection uniformity and minimal optical crosstalk for your applications.
Application
Time-of-Flight PET (TOF-PET)
High Energy Physics Experiments
Gamma Spectroscopy
Homeland Security
Features
High Density & Gamma Stopping Power: Boasts a density of 7.4 g/cm³
Fast Scintillation Decay: Features a short decay time of ~40 ns
High Light Yield: Delivers a light yield of roughly 27,000–30,000 photons/MeV
Excellent Chemical Stability: Non-hygroscopic and mechanically robust
High Luminance Uniformity
Production and Supply Capability
Maximum Size: ɸ80mm x 200mm
Available items: monolithic crystal, scintillation screen, pixellated array
Scintillation Screen Design Options of LSO(Ce) Scintillators
Freestanding ultra-thin scintillation screen.
Ultra-thin scintillation screens can be coupled to a substrate with optical adhesives in order to achieve better optical readout.
Scintillation screens can be inserted into frames(Aluminum, Stainless steel) for easier manipulation.
We can provide customized markings such as a grid, cross, or scale on the surface of the screen for easier beam visualization.
We can provide various coating on the surface of the screen upon request, such as reflection coatings(Al, Au, Ag etc.), AR coating, diffusion painting(TiO2, Al2O3), and conductive coatings(Al, ITO, C).
Properties
Density (g/cm3) | 7.4 |
Decay Constant (ns) | 40 |
Wavelength of Emission Max (nm) | 420 |
Light Output of NaI(Tl) | 75% |
Melting Point (K) | 2070 |
Refractive Index of Emission Max | 1.82 |
Hygroscopicity | none |
Cleavage | none |
Light yield (photons/keV) | ~30 |
Hardness (Mho) | 5.8 |
