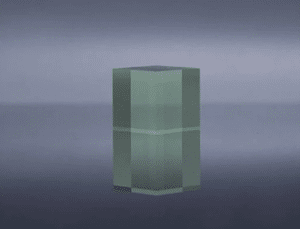

LuAG(Pr) Scintillator (LuAG(Pr) Scintillation Crystal)
Praseodymium-doped Lutetium Aluminum Garnet (LuAG:Pr) is an advanced high-performance inorganic scintillation material. It boasts a high density of 6.73 g/cm³, ultra-fast decay time of ~20 ns, and a light yield of 16，000~20,000 photons per MeV, with excellent energy resolution and radiation hardness. It is particularly ideal for time-of-flight positron emission tomography (TOF-PET) and high-energy electromagnetic calorimeter experiments.
OST Photonics provides custom supply of LuAG(Pr) crystals and LuAG(Pr) scintillation screens tailored to your specific needs. We offer a full range of flexible design options to match the unique requirements of different application scenarios and customer projects.
Application
Time-of-Flight PET (TOF-PET)
High Energy Physics
High-rate Gamma Spectroscopy
Nuclear Security Detection
Features
Ultra-fast Scintillation Decay: Boasts an extremely short decay time of ~20 ns
High Gamma Detection Efficiency: Has a high density of 6.7 g/cm³ and an effective atomic number of 63
Outstanding Radiation Hardness
Good Mechanical Stability: Non-hygroscopic and mechanically robust
Production and Supply Capability
Maximum Size: ɸ50mm x 135mm
Available items: monolithic crystal, scintillation screen
Scintillation Screen Design Options of LuAG(Pr) Scintillators
Freestanding ultra-thin scintillation screen.
Ultra-thin scintillation screens can be coupled to a substrate with optical adhesives in order to achieve better optical readout.
Scintillation screens can be inserted into frames(Aluminum, Stainless steel) for easier manipulation.
We can provide customized markings such as a grid, cross, or scale on the surface of the screen for easier beam visualization.
We can provide various coating on the surface of the screen upon request, such as reflection coatings(Al, Au, Ag etc.), AR coating, diffusion painting(TiO2, Al2O3), and conductive coatings(Al, ITO, C).
Properties
Material | Pr:LuAG |
Light Yield (Photons/MeV) | 16000-20000 |
Decay Time (ns) | 20 |
Peak Emission (nm) | 310 |
Energy Resolution (%@622keV) | ≤5(5*5*5mm) |
Density (g/cm3) | 6.73 |
Hygroscopic | None |
