- Material: MgAl2O4 single crystal
- Orientation: <111>±0.3°
- Dimension: 5 mm x 5 mm
- Dimension Tolerance: +/-0.1 mm
- Thickness: 0.5 mm
- Thickness Tolerance: +/-0.05 mm
- Polishing: Single Side Polished
- Polished Side Roughness: Ra<0.5 nm

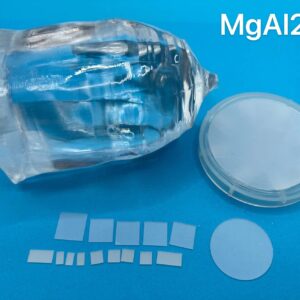

MgAl2O4 Single Crystal Description
Magnesium aluminate (MgAl2O4) can be used as the substrate substrate of III-V nitride device thin film, and is also widely used in acoustic wave and microwave devices and fast IC epitaxial substrates. In addition, it has a good lattice matching with epitaxial silicon thin layer. The self-doping of aluminum atoms in the epitaxial silicon thin layer is small, the thermal stability is good, and the expansion coefficient of silicon is relatively close, the hardness is small, the processing performance is better, etc., so it can be used as a high-quality insulating lining for ultra-high-speed large-scale integrated circuits One of the bottom materials.
For further details, please kindly visit MgAl2O4 Substrate – OST Photonics (ost-photonics.com).If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: email@example.com.
Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at firstname.lastname@example.org.
