Diameter 40 mm x 40 mm NaI(Tl) Scintillation Detector
Click to enlarge

Diameter 40 mm x 40 mm NaI(Tl) Scintillation Detector, Energy Resolution: <7.5%@662keV(7.0% typ.)

$385.00

Brand: OST Photonics

Quantity: 1 piece

Delivery Time: 3 weeks

Bulk Discount: 3%(≥5 Pieces)

Categories: ,
Description

Description

Specifications

  1. Scintillator: Dia. 40 mm x 40 mm NaI(Tl) scintillator
  2. PMT: 10-stage Dia. 2 inch PMT with 14-pin connector
  3. Energy Resolution: <7.5%@662keV(7.0% typ.)
  4. Operating Temperature: -30~50℃
  5. High Voltage: +400~+1100V(Positive polarity configuration)
  6. Aluminum Housing

Diameter 40 mm x 40 mm NaI(Tl) Scintillation Detector Description

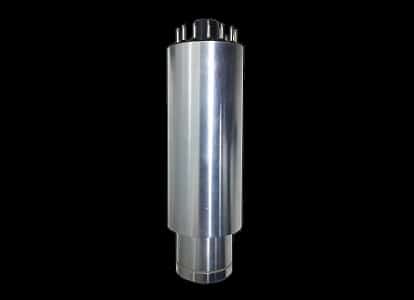

The Diameter 40 mm x 40 mm NaI(Tl) Scintillation Detector is a hermetically sealed assembly which includes a high resolution Dia. 40 mm x 40 mm NaI(Tl) scintillator, a 2″ photomultiplier tube, an internal magnetic/light shield, an aluminum housing and a 14-pin connector.

This kind of 14-pin NaI(Tl) detectors have good energy resolution(<7.5%@662keV) and stability, their standard 14-pin connector can be easily inserted in plug-on photomultiplier tube(PMT) base or digital Multi-Channel Analyzer(MCA) for Gamma-ray detection systems.
