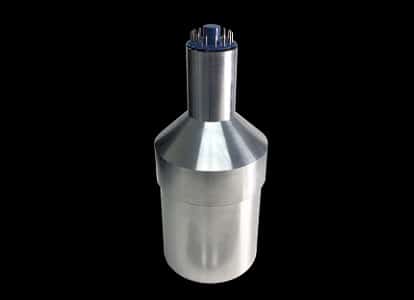

Diameter 5 inch x 5 inch NaI(Tl) Scintillation Detector, Energy Resolution:
Click to enlarge

Diameter 5 inch x 5 inch NaI(Tl) Scintillation Detector, Energy Resolution: <8.5%@662keV

$5,040.00

Brand: OST Photonics

Quantity: 1 piece

Delivery Time: 4 weeks

Bulk Discount: 2%(≥2 Pieces)

Categories: ,
Description

Description

Specifications

  1. Model Number: NAI5/5P5
  2. Scintillator: Dia. 5 inch x 5 inch NaI(Tl) scintillator
  3. PMT: ET Enterprises Dia. 5″ 9390KB(10-stage, 14-pin connector)
  4. Energy Resolution: <8.5%@662keV
  5. Operating Temperature: -30~50℃
  6. High Voltage: +400~+1100V(Positive polarity configuration)
  7. Aluminum Housing

Diameter 5 inch x 5 inch NaI(Tl) Scintillation Detector Description

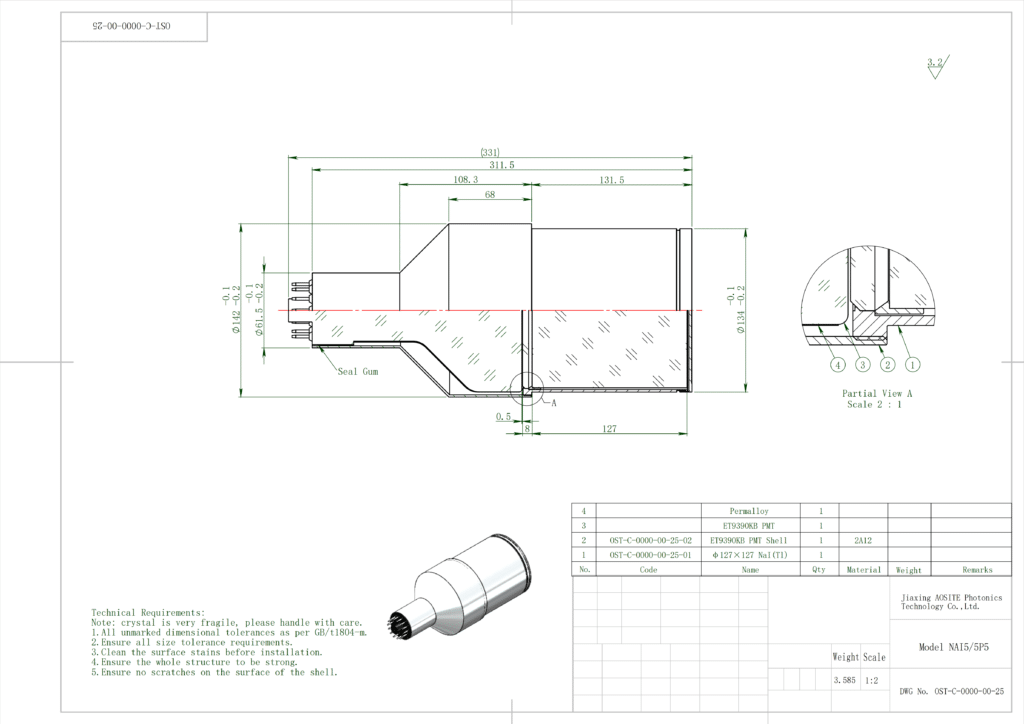

The Model NAI5/5P5 Scintillation Detector is a hermetically sealed assembly which includes a high resolution Dia. 5″x5″ NaI(Tl) scintillator, a 5″ ET Enterprises photomultiplier tube(9390KB), an internal magnetic/light shield, an aluminum housing and a 14-pin connector.

This kind of 14-pin NaI(Tl) detectors have good energy resolution(<8.5%@662keV) and stability, their standard 14-pin connector can be easily inserted in plug-on photomultiplier tube(PMT) base or digital Multi-Channel Analyzer(MCA) for Gamma-ray detection systems.

For more information please visit https://ost-photonics.com/products/scintillation-crystal/scintillation-detector/5×5-naitl-scintillation-detector/. If there are any further questions or comments, please contact our sales: sales@ost-photonics.com.
