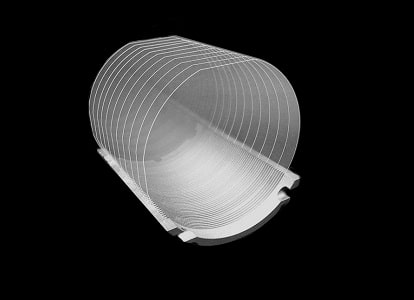

Optical Grade Z-Cut Diameter 3 inch x 1 mm DSP LiNbO3 Wafer
Click to enlarge

Optical Grade Z-Cut Diameter 3 inch x 1 mm DSP LiNbO3 Wafer (10 Pieces)

$504.00

Brand: OST Photonics

Quantity: 10 pieces

Delivery Time: 4 weeks

Bulk Discount: 7%(≥20 Pieces)

Categories: ,
Description

Description

Main Specifications

  1. Material: LiNbO3 Single Cryatsl
  2. Grade: Optical Grade
  3. Orientation: Z-Cut
  4. Diameter: 76.2±0.1mm
  5. Thickness: 1.0±0.03mm
  6. Surface Finish: DSP
  7. Polished Side: Ra<1nm
  8. S/D: 20/10

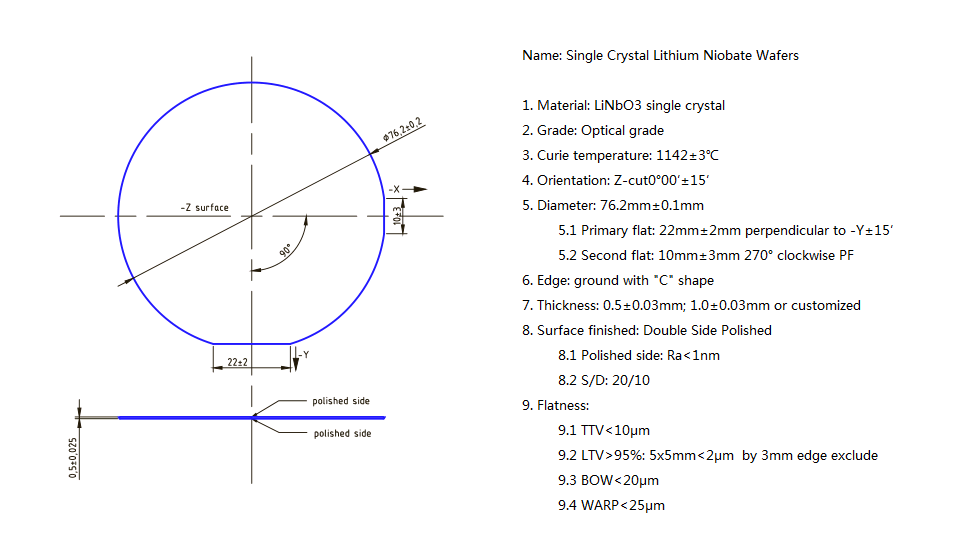

Drawing:

For more information please visit https://www.ost-photonics.com/products/saw%EF%BC%86optical-grade-crystal/optical-grade-linbo3-ln-wafer/. If there are any further questions or comments, please contact our sales: sales@ost-photonics.com.
