10 mm x 10 mm x 0.5 mm YAP(Ce) Scintillation Crystal, Double Sides Polished (5 Pieces)
Click to enlarge

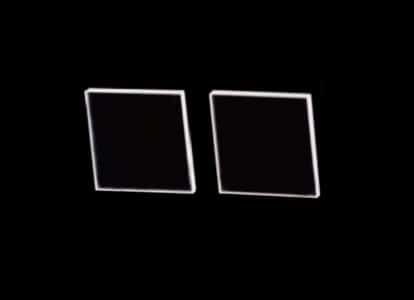

10 mm x 10 mm x 0.5 mm YAP(Ce) Scintillation Crystal, Double Sides Polished (5 Pieces)

$350.00

Brand: OST Photonics

Quantity: 5 pieces

Delivery Time: 2 weeks

Bulk Discount: 15%(≥20 Pieces)

Categories: ,
Description

Description

Specification

  1. Crystal Size: 10 mm x 10 mm x 0.5 mm
  2. Polishing: Double sides polished
  3. Diameter Tolerance: ±0.1 mm
  4. Thickness Tolerance: ±0.02 mm

Features

  1. Fast decay time: 40ns
  2. High light output
  3. Excellent physical and chemical characteristics

Main Applications

  1. Scanning electron microscope(SEM)
  2.  X-ray imaging
  3. Electron imaging
  4. Gamma, X-ray counter

YAP(Ce) Scintillation Crystal Description

Cerium-doped yttrium aluminum perovskite (YAP: Ce) is a fast, mechanically strong and chemically resistant scintillation material. Mechanical properties enable precise machining and entrance windows can be made with a very thin aluminum layer deposited directly on the entrance surface of the crystal. YAP:Ce scintillators have very low energy secondary X-ray emissions which makes them desirable for imagining applications. YAP:Ce detectors are used for gamma and X-ray counting, electron microscopy, electron and X-ray imaging screens, and tomography systems.

For more information please visit https://www.ost-photonics.com/products/scintillation-crystal/scintillation-crystal-material/yapce/. If you have any further inquiries and comments, or require a quotation for different specifications and quantities, please do not hesitate to contact our sales team: sales@ost-photonics.com.

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at sales@ost-photonics.com.
