End-well Diameter 3 inch x 3 inch NaI(Tl) Scintillation Detector, Energy Resolution:
Click to enlarge

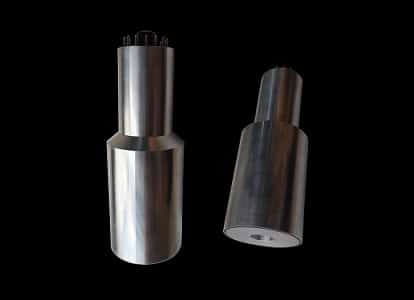

End-well Diameter 3 inch x 3 inch NaI(Tl) Scintillation Detector, Energy Resolution: <8.5%@662keV(7.9% typ.)

$1,630.00

Brand: OST Photonics

Quantity: 1 piece

Delivery Time: 3 weeks

Bulk Discount: 7%(≥2 Pieces)

Categories: ,
Description

Description

Specifications

  1. Model Number: NAI3/3P3-EW
  2. Scintillator: End-well Dia. 3 inch x 3 inch NaI(Tl) scintillator
  3. PMT: 8-stage Dia. 3 inch PMT with 14-pin connector
  4. Energy Resolution: <8.5%@662keV(7.9% typ.)
  5. Operating Temperature: -30~50℃
  6. High Voltage: +400~+1100V(Positive polarity configuration)
  7. Aluminum Housing

End-well Diameter 3 inch x 3 inch NaI(Tl) Scintillation Detector Description

The Model NAI3/3P3-EW Scintillation Detector is a hermetically sealed assembly which includes a high resolution End-well Dia. 3″x3″ NaI(Tl) scintillator, a 3″ photomultiplier tube, an internal magnetic/light shield, an aluminum housing and a 14-pin connector.

This kind of 14-pin NaI(Tl) detectors have good energy resolution and high detection efficiency, their standard 14-pin connector can be easily inserted in plug-on photomultiplier tube(PMT) base or digital Multi-Channel Analyzer(MCA) for Gamma-ray detection systems.

Our online ordering system is designed for the convenience of customers who wish to purchase standard products. If your organization does not allow payment by PayPal or if you want to apply for a special discount, please reach out to us at sales@ost-photonics.com.
